BEST WOODEN COOLING TOWER

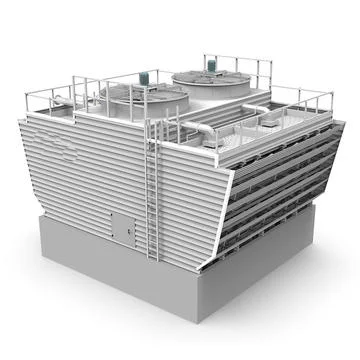

Wooden Cross Flow Type Cooling Tower is available in single Cell Cooling Capacity from 100 TR to 2000 TR. Our range of Cross Flow Type Cooling Tower including SFID (Single Flow Induced Draft) and DFID (Double Flow Induced Draft) Cooling Towers. In Cross Flow Type Cooling Tower the water flows vertically through the fills while the air flows horizontally across the flow of the falling water. Because of this, air does not have to pass through the distribution system, permitting the use of gravity flow hot water distribution basins mounted at the top of the unit above the fills.
Key
- Lower Operating Costs : Adjustable pitch fans with true airfoil blades and 96% efficient Gear Reducer drive assure maximum utilization of applied fan power. Fully optimized fill configurations and low pressure-drop drift eliminators afford maximum cooling with minimum power input. Gravity flow water distribution minimizes pump power requirements.
- Lower Maintenance Costs : Heavy-duty aluminum alloy fans, cast-iron Geareducers, and stainless steel drive shafts require only periodic maintenance. Widespaced splash-fill helps prevent clogging. The fill area is readily accessible for cleaning.
- 2-year Driving System Warranty : ICTMCO. guarantee your tower’s mechanical equipment for two full years. You’ll save valuable equipment maintenance amount.
- One Destination for All Parts : All tower components except the electric motors are designed, manufactured, guaranteed, and stocked by ICTMCO. You always know who to call for any parts you need. You’re also assured that all components of the cooling tower will work together, because they are designed to work together.
Major Components :
- Construction : The structural framework of the tower are Douglas Fir, designed in accordance with CTI STD-114. Shear plates are utilized to transmit loads at critical joints, and all fasteners shall be in accordance with CTI STD-119. Basic design criteria shall be 30 psf wind load and 5% G seismic load.
Structural columns shall be 3″x4″, except for louver support columns which shall be 3″x6″. Diagonals shall be 3″x4″ and 4″x4″ lumber. Framing girts may be 2″x4″, except for those supporting the hot water basins and fill. Those girts shall be 2″x6″ minimum. - Column Lines are kept on min. 4′-0″ longitudinal centers, and the base of all perimeter columns shall be firmly anchored to galvanized steel base plates.
- Fan Deck & Fan Cylinder : The fan deck shall acts as a working platform for maintenance, Hence fabricated of Min. 1″ thick, 7 ply, exterior grade, treated Douglas Fir plywood, and is designed for a uniform live load of 40 psf or a concentrated load of 400 pounds.
Fan cylinders are made of molded FRP. They are anchored to the fan deck structure to provide a consistently stable operating shroud for the fan. Fan cylinders less than 72″ in height are equipped with a removable, hot dip galvanized steel fan guard for the protection of operating personnel. - Mechanical Equipments : Provided Fan(s) are propeller-type, incorporating heavy duty blades of FRP, with individually adjustable Blades. Fan(s) are driven through a right-angle, industrial-duty, oil-lubricated, geared speed reducer that requires no oil changes for the first three (3) years of operation.
Motors are located outside the fan cylinder at the fan deck, connected to the speed reducer by a tubular stainless steel, dynamically balanced driveshaft equipped with neoprene flexible coupling elements. - A galvanized oil gauge and drain line are provided from the gear reducer to the vicinity of the motor, and are equipped with a dip stick for oil level measurement.
Industrial Cooling Tower Mfg. Co. — Professional Wooden Cooling Tower Manufacturer
This kind of cooling device also called a wooden cooling tower, is made of wood that has been chemically treated. The wood structure tower’s counter/cross-flow design makes it appropriate for industrial use in petrochemical and steel mills, among other places. The product’s durability and robust design are what make it so popular. A reputable producer of wooden cooling towers with customized specifications and designs is Industrial Cooling Tower Mfg. Co. With more industry experience in the HVAC sector, the company offers full cooling solutions, including on-site installation and compact design.
We at our company value quality and work hard to produce all of our products to the highest possible standards. Being one of India’s top wooden cooling tower manufacturers, we’re dedicated to giving our clients the greatest goods and services available to satisfy their demands. Get a Wooden Cooling Tower Quotation by contacting us right now. Depending on whether the design is cross-flow or counterflow, we provide a variety of models with different air travels, fill heights, fill patterns, and fan diameters. They can satisfy the heightened cooling needs of diverse industries because they are made to withstand operational load and wind pressure of up to 30 psf.
If you’re looking for a wooden cooling tower manufacturer in India, choose Industrial Cooling Tower Mfg. Co. By your needs, we provide the best wooden cooling tower options. These towers are often built over RCC sump pumps, which are made to support the towers and guarantee that enough air is drawn into the tower and doesn’t escape. Get timber cooling tower manufacturers call now today
Our Wooden Cooling Tower MERITS:
- Removes fill media and consequently maintenance.
- Removes the need for a motor or fan and consequently.
- Power is utilized in applications involving high temperatures.
- Utilized by industries that contaminate waterways.
- HDG Steel for all structural purposes to prevent rust.
- Every joint has SS fasteners.
- FRP/GI louvers designed with aerodynamicsIn a single cell, the delta T temperature drops from 4 °C to 30 °C.
- Nozzles that are specifically made to not clog and atomize water to mist.
- Visit our website to get more info-: Industrial Cooling Tower Manufacturer In India Call us.
Frequently Asked Questions Related To Wooden Cooling Tower-:
What are the advantages of using a wooden cooling tower over other materials like steel or concrete?
Wooden cooling towers offer several advantages, including natural thermal insulation, corrosion resistance, and eco-friendliness. They are also typically more cost-effective and easier to maintain compared to steel or concrete towers.
How long can a wooden cooling tower last before requiring replacement or significant repairs?
The lifespan of a wooden cooling tower largely depends on factors such as maintenance, environmental conditions, and the quality of materials used. Properly maintained wooden cooling towers can last upwards of 20 to 30 years before needing significant repairs or replacement.
Can wooden cooling towers be customized to fit specific space or performance requirements?
Yes, wooden cooling towers can be customized in terms of size, configuration, and performance specifications to meet the unique needs of different applications. Customization options may include varying fan capacities, fill media types, and structural designs.
How do wooden cooling towers withstand exposure to water and weather elements without deteriorating quickly?
Wooden cooling towers are typically constructed using treated timber or specialized coatings that enhance their resistance to water, UV rays, and other weather elements. Regular maintenance, such as inspections and reapplications of protective coatings, helps prolong their lifespan.
